Goods movement logs in EWM record which handling units moved and their status; this data product publishes them in real time as each log entry is created. It reads /SCWM/GMHUHDR for the handling unit header, /SCWM/GMHUITM for its items, /SCWM/GMHUSTAT for HU status and /SCWM/GMHUREF for object references.
BOR event ZEWN_HU_JSON triggers the capture, and the scope is limited to create actions. Compatible with SAP ECC & SAP S/4HANA, the model comes as a ready-to-use Excel template and can be extended with Z/custom tables or CDS views.
TECHNICAL SPECIFICATIONS
| Business Area | Extended Warehouse Management |
|---|---|
| Compatible with | SAP ECC & SAP S/4HANA |
| Integration Mode | Real-Time |
| Triggering Event | BOR Event ZEWN_HU_JSON |
| Actions | Create |
| Data Type | Transactional Data |
DESCRIPTION
DATA PRODUCT ASSET DETAILS
Turn complex SAP structures into actionable data streams in minutes. Our Foundational Data Product provides a ready-to-use Excel template containing all necessary EWM Handling Unit GM logic and table relationships.
Simply load, adjust, and save.
DATA PRODUCT SOURCE TABLES

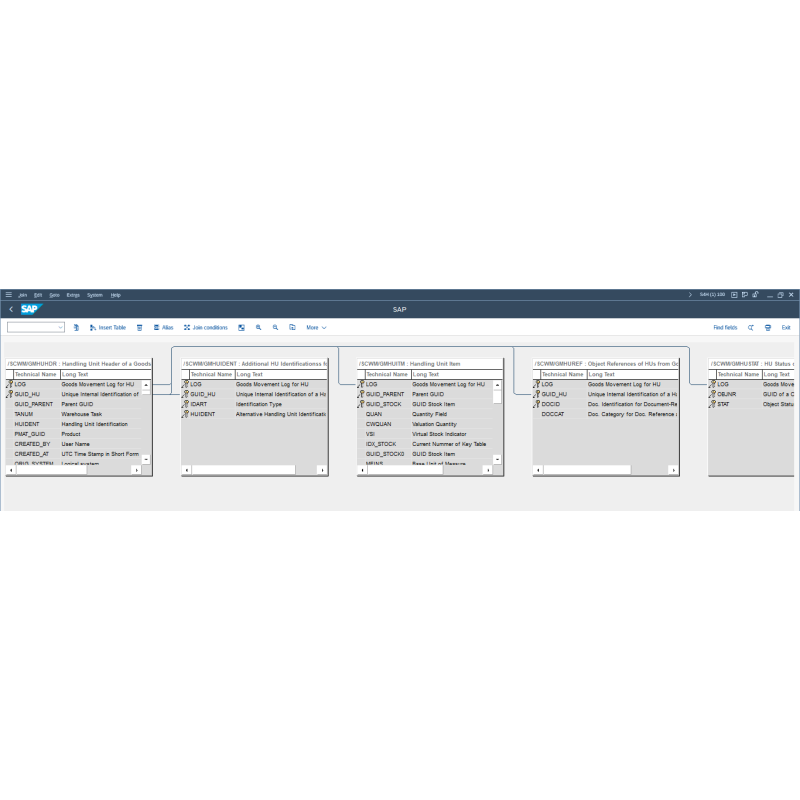

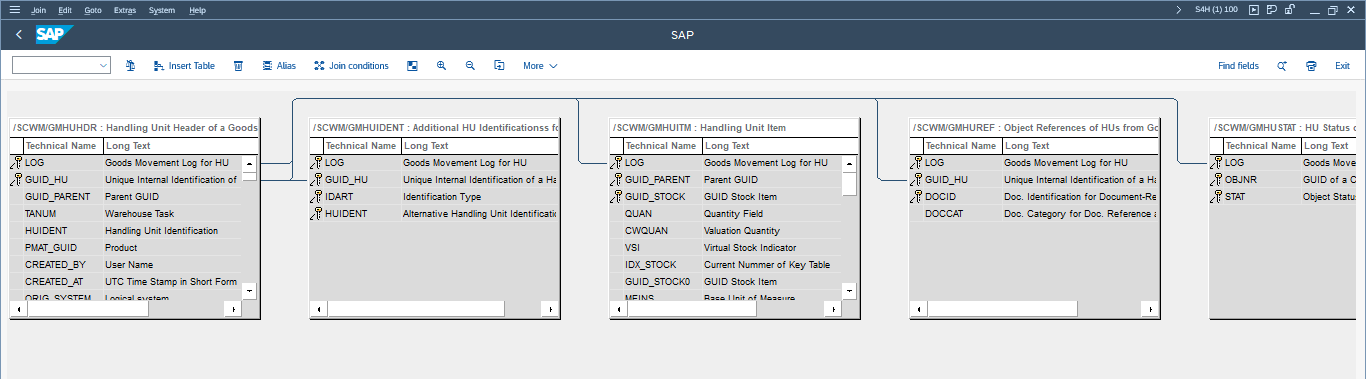

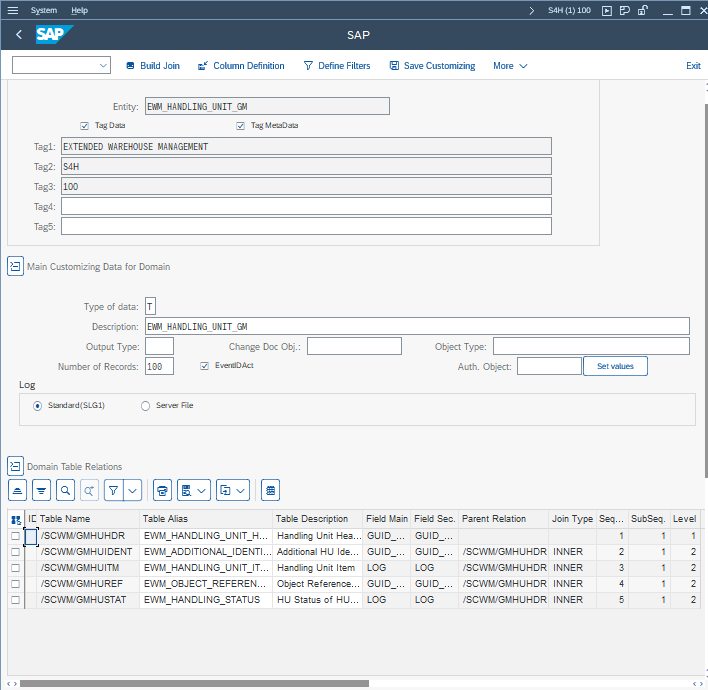

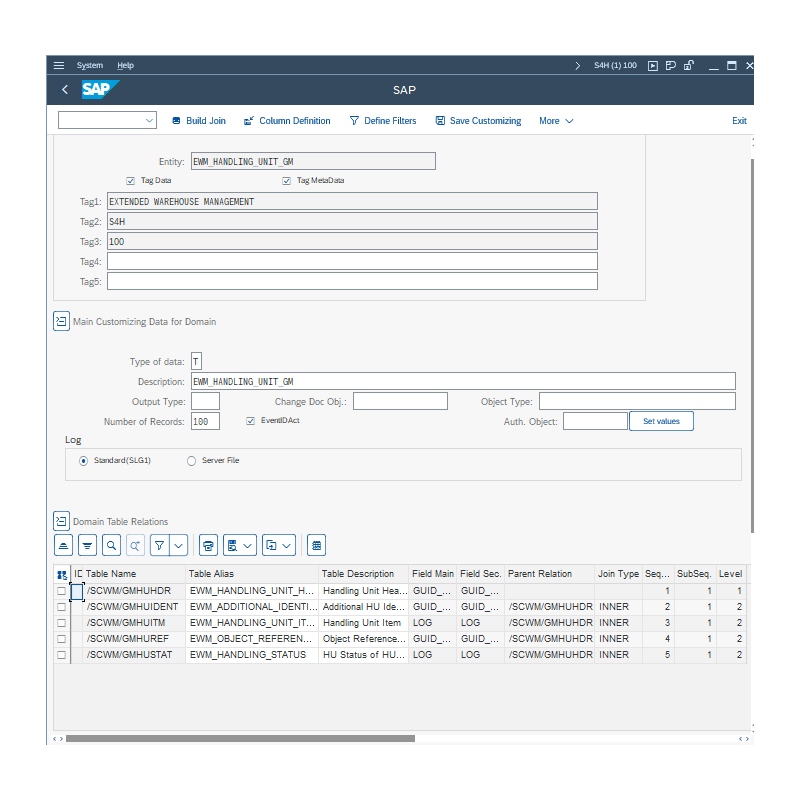

Gain immediate visibility into the specific SAP tables included in this Data Product. This section outlines the core EWM Handling Unit GM tables and their definitions, helping you assess data availability upfront to streamline your customization and deployment strategy.
|
Table Name |
Table Description |
|
/SCWM/GMHUHDR |
Handling Unit Header of a Goods Movement Log |
|
/SCWM/GMHUIDENT |
Additional HU Identificationss for a Goods Movement Log |
|
/SCWM/GMHUITM |
Handling Unit Item |
|
/SCWM/GMHUREF |
Object References of HUs from Goods Movement Log |
|
/SCWM/GMHUSTAT |
HU Status of HUs from Goods Movement Log |
